Zagyszivattyúk

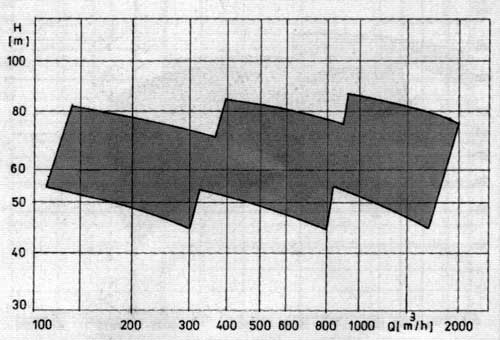

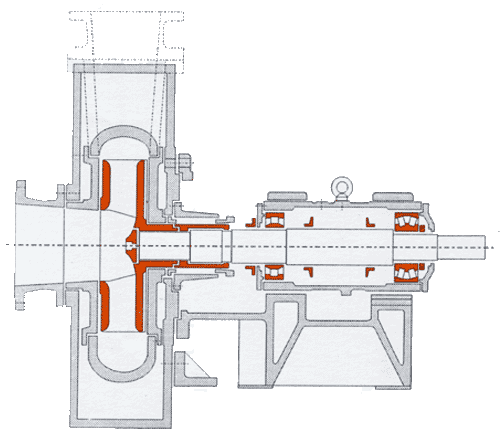

22T


22T
ZOOM ZOOM

Application

Charged fluids with abrasive suspensions: slag, water and ash hydromixture, slurry, pulp, solid / liquid mixture in max 1/8 proportion and the particle dimensions in suspensions is max 30 mm.

Discharge diameter

Performance
Q=110 ÷ 2000
H=15 ÷ 37
p<= 20
t<= 50
n= 960; 1450

125÷ 300 mm


m3/h
m
bar
°C
min-1

Constructive features

Single stage
Horizontal (with vertical version)
Radially split volute casing, armoured protection
Radially closed impeller, in special construction, overhung mounted

Materials

High-alloy cast iron with cromium

Variants

ZOOM

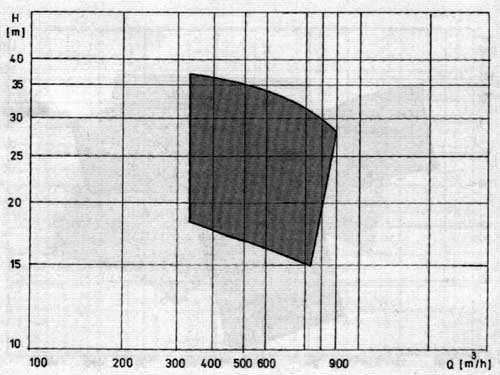

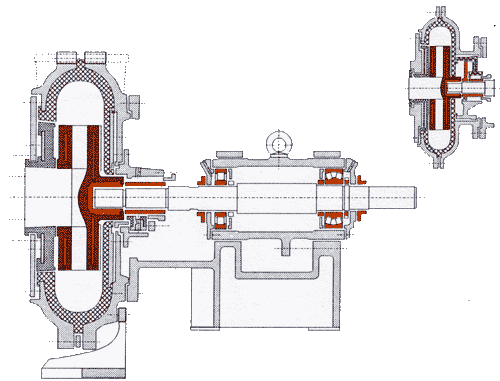

16F


16F
ZOOM
ZOOM

Application

Charged fluids with fine abrasive particles: water with ore hydromixture

Discharge diameter

Performance
Q=350 ÷ 900
H=15 ÷ 37
p<= 6
t<= 50
n= 490 ÷ 730

300 mm


m3/h
m
bar
°C
min-1

Constructive features

Single stage
Horizontal
Radially split volute casing, rubberized
Radially closed impeller, rubberized, overhung mounted

Materials

High-alloy cast iron.

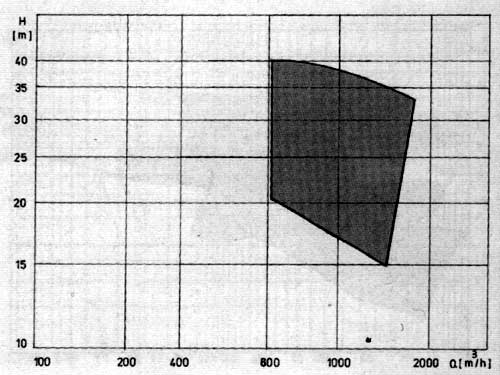

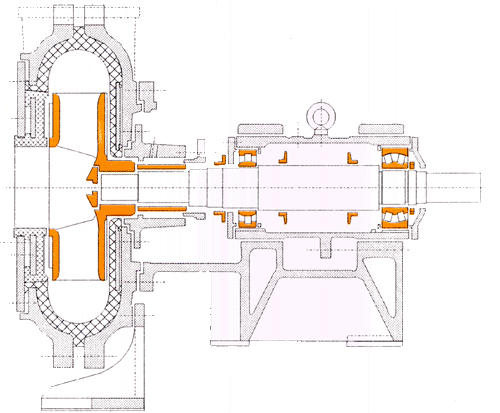

164M


164M
ZOOM
ZOOM

Application

Fluids with large particles suspensions: water / ore hydromixture, pulp, slurry

Discharge diameter

Performance
Q=800 ÷ 1600
H=15 ÷ 40
p<= 6
t<= 50
n= 490 ÷ 730

300 mm


m3/h
m
bar
°C
min-1

Constructive features

Single stage
Horizontal
Radially split volute casing, rubberized
Radially closed impeller, metalical, overhung mounted

Materials

High-alloy cast iron.

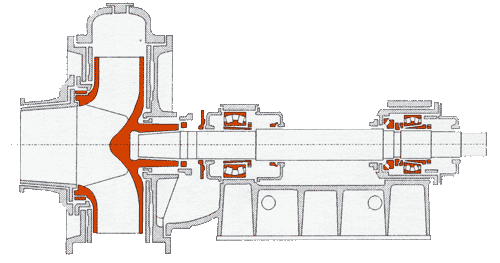

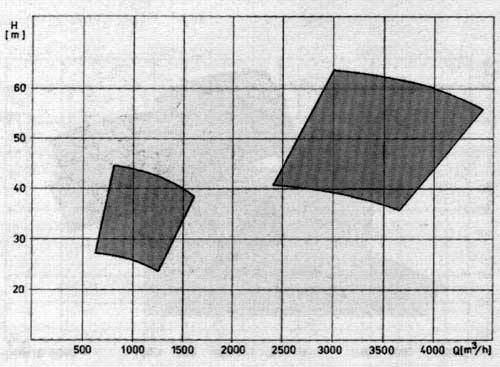

22B


22B
ZOOM
ZOOM

Application

Charged and abrasive course liquids: water hydromixture with gravel, sand; gravel sand bed, ooze.

Discharge diameter

Performance
Q=650 ÷ 4500
H=24 ÷ 64
p<= 10
t<= 50
n= 490; 560

350 ÷ 500 mm


m3/h
m
bar
°C
min-1

Constructive features

Single stage
Horizontal
Radially split casing
Radially closed impeller, in special construction, overhung mounted

Materials

Manganese steel

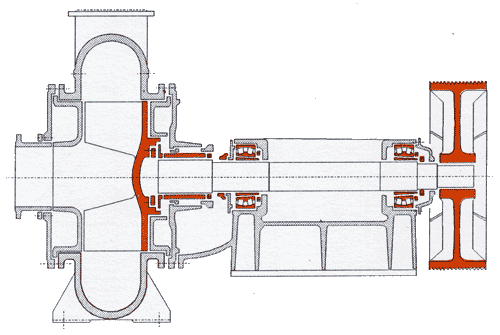

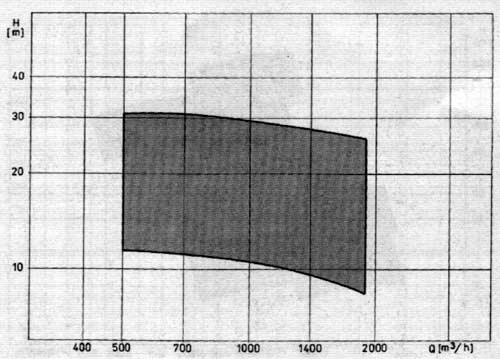

21S


21S
ZOOM
ZOOM

Application

Charged fluids with nonabrasive suspensions: water hydromixture of beet, fruits, pulps, fibrous suspensions.

Discharge diameter

Performance
Q=500 ÷ 1850
H=8 ÷ 30
p<= 6
t<= 50
n= 295 ÷ 470

400 mm


m3/h
m
bar
°C
min-1

Constructive features

Single stage
Horizontal
Radially split casing
Radially open impeller, in special construction, overhung mounted

Materials

Manganese steel

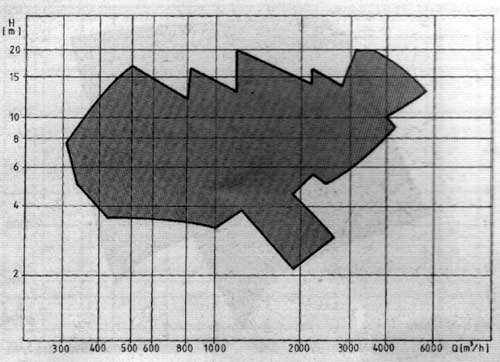

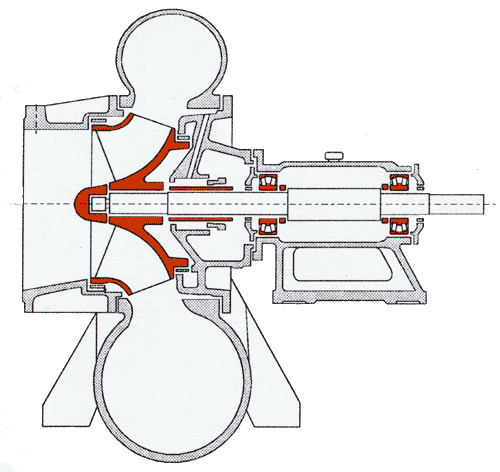

291A


291A
ZOOM
ZOOM

Application

Pumping liquids charged with solid or fibrous suspensions:
used water, residual water, slurry, ooze.
- waste water supply
-dewatering
- drainage
- sewage handling
- water treatment
- axilliary installations in refineries

Discharge diameter

Performance
Q=300 ÷ 5500
H=2 ÷ 20
p<= 6
t<= 40
n= 325 ÷ 1450

250 ÷ 600 mm


m3/h
m
bar
°C
min-1

Constructive features

Single stage
Horizontal
Radially split volute casing
Mixed-flow closed impeller, overhung mounted

Materials

Grey cast iron

Variants
