Buffalo Család

Buffalo Standard


Buffalo Standard
ZOOM
ZOOM

Application

Pumping clean or
slightly charged liquids
with non abrasive
particles, corrosive or
non corrosive content:
base or acid solutions, ammonia solutions,
solvents, treated water, clean water.



Discharge diameter

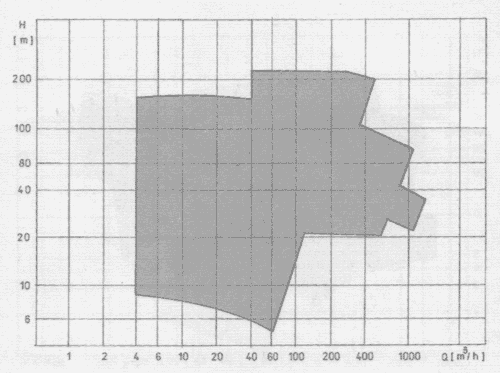

Performance
Q=3 ÷ 1700
H=3 ÷ 220
p<= 16; 25
t<= 130
n= 1400; 2900

32 ÷ 300 mm


m3/h
m
bar
°C
min-1

Constructive features

Single stage
Horizontal
Radially split volute casting
Radial closed impeller, overhung mounted
Design acording by API 610

Materials

Grey cast iron, carbon steel, chrome- nickel - molybdenum cast steel, special materials possible

Buffalo Medium

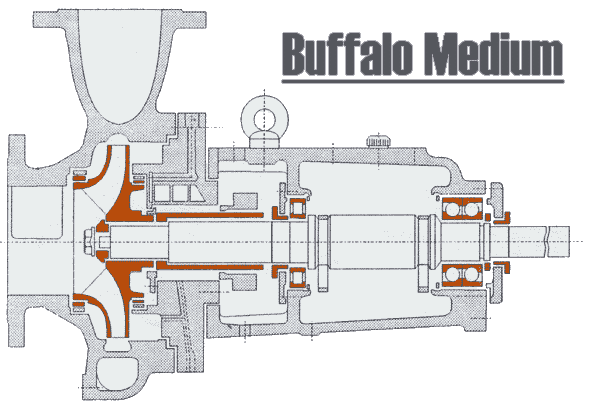

Buffalo Medium
ZOOM
ZOOM

Application

Pumping clean or
slightly charged liquids
with non abrasive
particles, corrosive or
non corrosive content:
hydrocarbons, thermic oils, base or acid solutions, solvents, liquefied gases, condensate, warm water, treated water.

Discharge diameter

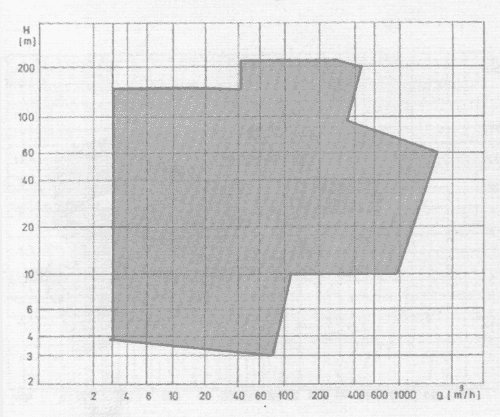

Performance
Q=3 ÷ 1700
H=3 ÷ 220
p<= 25; 40
t<= 350
n= 1450; 2900

32 ÷ 300 mm


m3/h
m
bar
°C
min-1

Constructive features

Single stage
Horizontal
Radially split volute casting
Radial closed impeller, overhung mounted
Design acording by API 610

Materials

Carbon steel, chromium cast steel chrome-nickel-molybdenum cast steel, special materials possible.

Variants
ZOOM

Buffalo Force


Buffalo Force
ZOOM
ZOOM

Application

Pumping clean or
slightly charged liquids
with non abrasive
particles, corrosive or
non corrosive content:
hydrocarbons, thermic oils, slurry, base or acid solutions, liquefied gases, condensate, warm water.



Discharge diameter

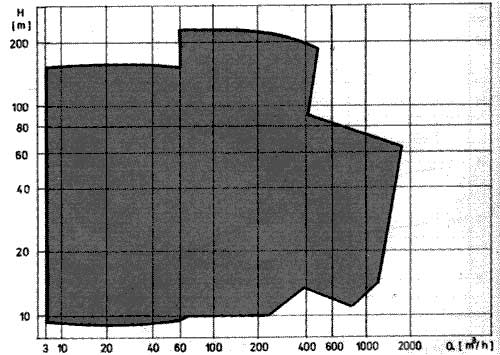

Performance
Q=4÷ 1200
H=5÷ 220
p<= 50
t<= 400
n= 1450; 2900

40÷ 250 mm


m3/h
m
bar
°C
min-1

Constructive features

Single stage
Horizontal (with vertical version)
Radially split volute casting
Radial closed impeller, overhung
mounted
Design acording by API 610

Materials

Carbon steel, chromium cast steel, chrome- nickel- molybdenum cast steel, special materials possible

Variants
ZOOM
